วิธีการใช้งานปากกาวัดความตึงของสายพาน

Last updated: Dec 20, 2019  |  101 จำนวนผู้เข้าชม  |  บทความ

วิธีการใช้งานปากกาวัดความตึงของสายพาน

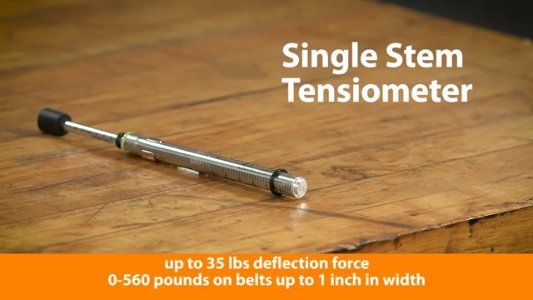

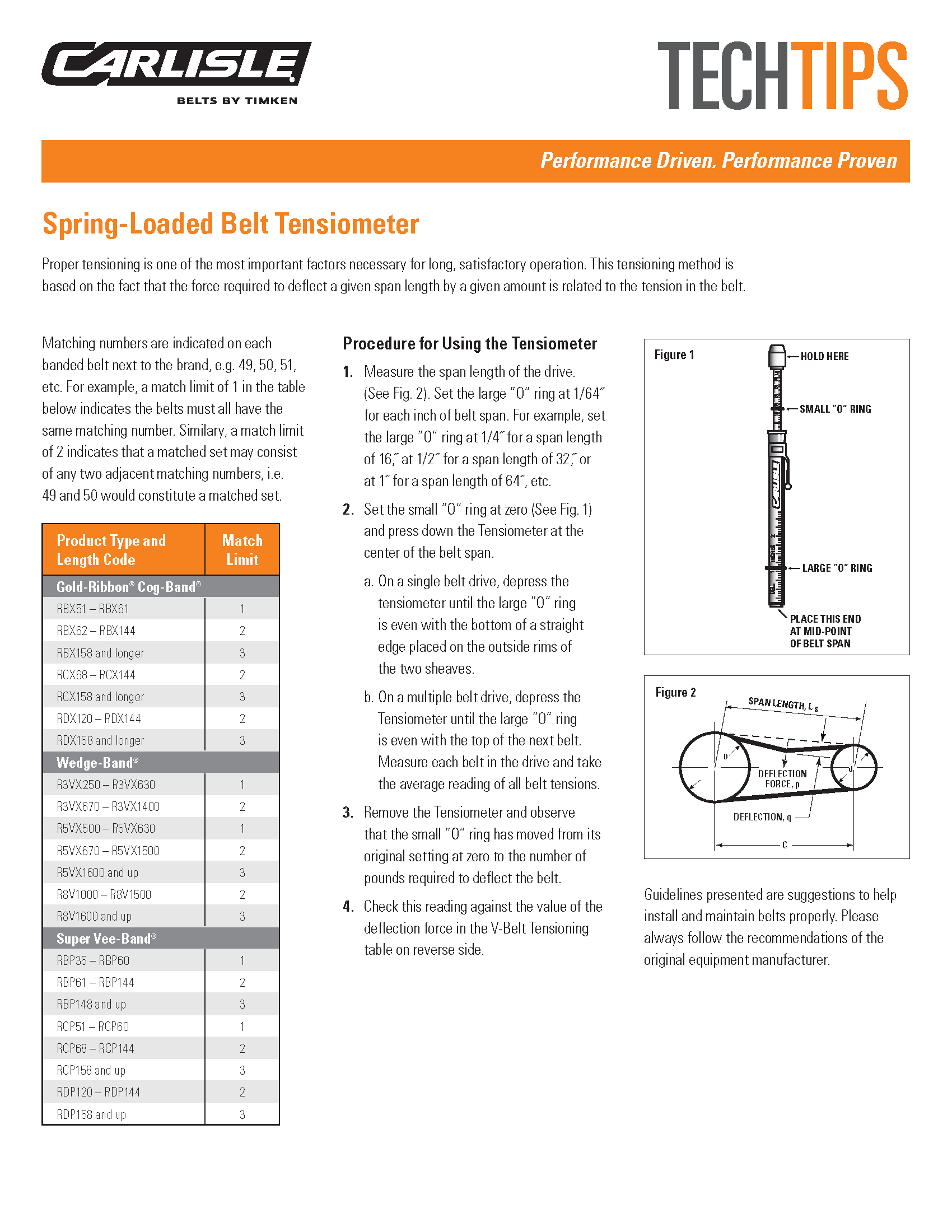

Spring-Loaded Belt Tensiometer

Proper belt tensioning is one of the most important factors necessary for long, satisfactory operation. Too little tension will result in slippage, causing rapid belt and sheave wear as well as a loss of productivity. Too much tension can result in excessive stress on the belts, bearings and shafts. The tensiometer uses a tensioning method based on the fact that the force required to deflect a given span length by a given amount is related to the tension in the belt. The single stem tensiometer is capable of measuring force from 0-35 lbs. (0-15.9 kg.) and belt tension from 0-560 lbs. (0–255 kg.) on belts up to 1 inch in width.


ตัวอย่างการใช้งาน

https://youtu.be/YLkPgimiotw
